1.25 to 3.0GHz Coaxial Isolator TG5050AS SMA Type/TG5050AN N Type

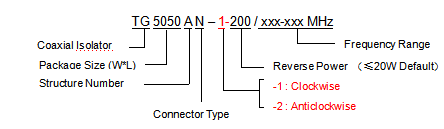

1.25 to 3.0GHz Coaxial Isolator Order Examples
1.25 to 3.0GHz Coaxial Isolator Connector Type
|
SMA Type Connector Options |
N Type Connector Options |
||||
|
Port 1 |
Port 2 |
Abbreviation |
Port 1 |
Port 2 |
Abbreviation |
|
SMA-F |
SMA-F |
S |
N-F |
N-F |
N |
|
SMA-F |
SMA-M |
SKJ |
N-F |
N-M |
NKJ |
|
SMA-M |
SMA-F |
SJK |
N-M |
N-F |
NJK |
|
SMA-M |
SMA-M |
SJ |
N-M |
N-M |
NJ |
|
SMA Type Connector Options |
N Type Connector Options |
||||
|
Port 1 |
Port 2 |
Abbreviation |
Port 1 |
Port 2 |
Abbreviation |
|
SMA-F |
SMA-F |
S |
N-F |
N-F |
N |
|
SMA-F |
SMA-M |
SKJ |
N-F |
N-M |
NKJ |
|
SMA-M |
SMA-F |
SJK |
N-M |
N-F |
NJK |
|
SMA-M |
SMA-M |
SJ |
N-M |
N-M |
NJ |
1.25 to 3.0GHz Coaxial Isolator Basic Specifications
| Impedance | 50 Ω |
| Connector Type | SMA-F |
| Size(mm) | 49.5*50.8*19.0 |
| Operating Temp | -10~+60℃ |
| Storage temperature | -50~+90 ℃ |
| Impedance | 50 Ω |
| Connector Type | N-F |
| Size(mm) | 49.5*50.8*19.0 |
| Operating Temp | -10~+60℃ |
| Storage temperature | -50~+90 ℃ |
1.25 to 3.0GHz Coaxial Isolator Specifications
|
Model No. (X=1: →Clockwise) (X=2: ←Anticlockwise) |
Freq. Range GHz |
IL. dB (max) |
Isolation dB (min) |
VSWR |
Forward Power CW |
Reverse Power W |
| TG5050AS-X/1250-2500MHz |
1.25-2.5 |
0.80 |
16.0 |
1.50 |
100 |
20 |
| TG5050AS-X/1350-2700MHz |
1.35-2.7 |
0.60 |
17.0 |
1.35 |
100 |
20 |
| TG5050AS-X/1350-2900MHz |
1.35-2.9 |
0.70 |
16.0 |
1.50 |
100 |
20 |
| TG5050AS-X/1400-2800MHz |
1.4-2.8 |
0.60 |
17.0 |
1.35 |
100 |
20 |
| TG5050AS-X/1500-2500MHz |
1.5-2.5 |
0.50 |
18.0 |
1.30 |
100 |
20 |
| TG5050AS-X/1500-3000MHz |
1.5-3.0 |
0.60 |
17.0 |
1.35 |
100 |
20 |
|
Model No. (X=1: →Clockwise) (X=2: ←Anticlockwise) |
Freq. Range GHz |
IL. dB (max) |
Isolation dB (min) |
VSWR |
Forward Power CW |
Reverse Power W |
|
TG5050AN-X/1250-2500MHz |
1.25-2.5 |
0.80 |
16.0 |
1.50 |
150 |
20 |
|
TG5050AN-X/1350-2700MHz |
1.35-2.7 |
0.60 |
17.0 |
1.35 |
150 |
20 |
|
TG5050AN-X/1350-2900MHz |
1.35-2.9 |
0.70 |
16.0 |
1.50 |
150 |
20 |
|
TG5050AN-X/1400-2800MHz |
1.4-2.8 |
0.60 |
17.0 |
1.35 |
150 |
20 |
|
TG5050AN-X/1500-2500MHz |
1.5-2.5 |
0.50 |
18.0 |
1.30 |
150 |
20 |
|
TG5050AN-X/1500-3000MHz |
1.5-3.0 |
0.60 |
17.0 |
1.35 |
150 |
20 |
Note: When the reflected power is selected as 50W, the model is: TG6466HN-X-50/XX-XXMHz, the overall size is the same.
Instructions:
1, the isolator connector can be selected SMA, N, male and female head can be used with the user;
2, the reflection power is often 20W and 50W choice, the shape is the same;
3, only some common frequencies in the table, can be produced according to the user's requirements;
4, if you do not find what you are looking for, please contact us!
