300 to 1250MHz Dual Junction Isolator TG9662HN N Type / TG9662HS SMA Type

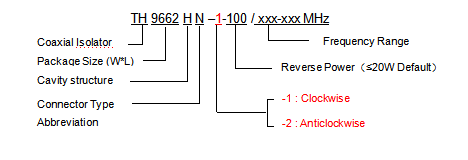

Order Examples
Connector Type
|
SMA Type Connector Options |
N Type Connector Options |
||||
|
Port 1 |
Port 2 |
Abbreviation |
Port 1 |
Port 2 |
Abbreviation |
|
SMA-K |
SMA-K |
S |
N-K |
N-K |
N |
|
SMA-K |
SMA-J |
SKJ |
N-J |
N-K |
NJK |
|
SMA-J |
SMA-K |
SJK |
N-K |
N-J |
NKJ |
|
SMA-J |
SMA-J |
SJ |
N-J |
N-J |
NJ |
|
SMA Type Connector Options |
N Type Connector Options |
||||
|
Port 1 |
Port 2 |
Abbreviation |
Port 1 |
Port 2 |
Abbreviation |
|
SMA-K |
SMA-K |
S |
N-K |
N-K |
N |
|
SMA-K |
SMA-J |
SKJ |
N-J |
N-K |
NJK |
|
SMA-J |
SMA-K |
SJK |
N-K |
N-J |
NKJ |
|
SMA-J |
SMA-J |
SJ |
N-J |
N-J |
NJ |
Basic Specifications
| Impedance | 50 Ω |
| Size(mm) | 96.0*62.0*26.0 |
| Operating Temp | -30~+70℃/-40~+85℃ |
| Storage temperature | -50~+90 ℃ |
| ConnectorType | N-K |
| Impedance | 50 Ω |
| Size(mm) | 96.0*62.0*26.0 |
| Operating Temp | -30~+70℃/-40~+85℃ |
| Storage temperature | -50~+90 ℃ |
| ConnectorType | SMA-K |
Specifications
|
Model No. (X=1: →Clockwise) (X=2: ←Anticlockwise) |
Freq. Range MHz |
IL. dB (max) |
Isolation dB (min) |
VSWR |
Forward Power CW |
Reverse Power W |
|
TG9662HN-X/300-320MHz |
300-320 |
1.2 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/300-350MHz |
300-350 |
1.6 |
36 |
1.35 |
100 |
20/100 |
|
TG9662HN-X/310-340MHz |
310-340 |
1.0 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/320-340MHz |
320-340 |
0.9 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/350-370MHz |
350-370 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/350-400MHz |
350-400 |
1.0 |
38 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/361-366MHz |
361-366 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/370-420MHz |
370-420 |
1.0 |
38 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/380-410MHz |
380-410 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/380-460MHz |
380-460 |
1.0 |
36 |
1.30 |
100 |
20/100 |
|
TG9662HN-X/390-410MHz |
390-410 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/400-420MHz |
400-420 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/400-440MHz |
400-440 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/400-450MHz |
400-450 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/400-470MHz |
400-470 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/400-500MHz |
400-500 |
1.0 |
38 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/410-460MHz |
410-460 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/420-430MHz |
420-430 |
0.6 |
50 |
1.15 |
100 |
20/100 |
|
TG9662HN-X/420-450MHz |
420-450 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/420-480MHz |
420-480 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/430-440MHz |
430-440 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/430-470MHz |
430-470 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/440-470MHz |
440-470 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/450-456MHz |
450-456 |
0.5 |
50 |
1.15 |
100 |
20/100 |
|
TG9662HN-X/450-500MHz |
450-500 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/450-520MHz |
450-520 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/450-550MHz |
450-550 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/455-465MHz |
455-465 |
0.5 |
50 |
1.15 |
100 |
20/100 |
|
TG9662HN-X/459-486MHz |
459-486 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/470-490MHz |
470-490 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/470-530MHz |
470-530 |
0.8 |
40 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/470-570MHz |
470-570 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/470-610MHz |
470-610 |
1.0 |
36 |
1.30 |
100 |
20/100 |
|
TG9662HN-X/475-525MHz |
475-525 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/495-516MHz |
495-516 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/500-600MHz |
500-600 |
0.8 |
40 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/500-700MHz |
500-700 |
1.4 |
34 |
1.35 |
100 |
20/100 |
|
TG9662HN-X/570-670MHz |
570-670 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/580-720MHz |
580-720 |
0.8 |
38 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/600-700MHz |
600-700 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/600-800MHz |
600-800 |
0.6 |
46 |
1.30 |
100 |
20/100 |
|
TG9662HN-X/670-770MHz |
670-770 |
0.8 |
40 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/690-860MHz |
690-860 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/700-800MHz |
700-800 |
0.5 |
50 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/700-862MHz |
700-862 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/700-900MHz |
700-900 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/703-862MHz |
703-862 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/750-950MHz |
750-950 |
0.5 |
50 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/770-860MHz |
770-860 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/800-1000MHz |
800-1000 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/854-921MHz |
854-921 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/860-872MHz |
860-872 |
0.5 |
50 |
1.15 |
100 |
20/100 |
|
TG9662HN-X/862-960MHz |
862-960 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/900-930MHz |
900-930 |
0.5 |
50 |
1.15 |
100 |
20/100 |
|
TG9662HN-X/900-1000MHz |
900-1000 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/900-1100MHz |
900-1100 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/900-1300MHz |
900-1300 |
1.0 |
38 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/950-1000MHz |
950-1000 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HN-X/950-1260MHz |
950-1260 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/950-1280MHz |
950-1280 |
1.0 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/950-1450MHz |
950-1450 |
1.2 |
34 |
1.35 |
100 |
20/100 |
|
TG9662HN-X/960-1160MHz |
960-1160 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/960-1215MHz |
960-1215 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HN-X/960-1260MHz |
960-1260 |
0.8 |
40 |
1.25 |
100 |
20/100 |
Reverse power 100W type
The reverse power of this figure is 100W, the specifications are shown in the table above, and the model is TG9662HN-X-100/XXX-XXXMHz
|
Model No. (X=1: →Clockwise) (X=2: ←Anticlockwise) |
Freq. Range MHz |
IL. dB (max) |
Isolation dB (min) |
VSWR |
Forward Power CW |
Reverse Power W |
|
TG9662HS-X/300-320MHz |
300-320 |
1.2 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/300-350MHz |
300-350 |
1.6 |
36 |
1.35 |
100 |
20/100 |
|
TG9662HS-X/310-340MHz |
310-340 |
1.0 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/320-340MHz |
320-340 |
0.9 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/350-370MHz |
350-370 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/350-400MHz |
350-400 |
1.0 |
38 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/361-366MHz |
361-366 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/370-420MHz |
370-420 |
1.0 |
38 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/380-410MHz |
380-410 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/380-460MHz |
380-460 |
1.0 |
36 |
1.30 |
100 |
20/100 |
|
TG9662HS-X/390-410MHz |
390-410 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/400-420MHz |
400-420 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/400-440MHz |
400-440 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/400-450MHz |
400-450 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/400-470MHz |
400-470 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/400-500MHz |
400-500 |
1.0 |
38 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/410-460MHz |
410-460 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/420-430MHz |
420-430 |
0.6 |
50 |
1.15 |
100 |
20/100 |
|
TG9662HS-X/420-450MHz |
420-450 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/420-480MHz |
420-480 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/430-440MHz |
430-440 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/430-470MHz |
430-470 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/440-470MHz |
440-470 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/450-456MHz |
450-456 |
0.5 |
50 |
1.15 |
100 |
20/100 |
|
TG9662HS-X/450-500MHz |
450-500 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/450-520MHz |
450-520 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/450-550MHz |
450-550 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/455-465MHz |
455-465 |
0.5 |
50 |
1.15 |
100 |
20/100 |
|
TG9662HS-X/459-486MHz |
459-486 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/470-490MHz |
470-490 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/470-530MHz |
470-530 |
0.8 |
40 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/470-570MHz |
470-570 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/470-610MHz |
470-610 |
1.0 |
36 |
1.30 |
100 |
20/100 |
|
TG9662HS-X/475-525MHz |
475-525 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/495-516MHz |
495-516 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/500-600MHz |
500-600 |
0.8 |
40 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/500-700MHz |
500-700 |
1.4 |
34 |
1.35 |
100 |
20/100 |
|
TG9662HS-X/570-670MHz |
570-670 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/580-720MHz |
580-720 |
0.8 |
38 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/600-700MHz |
600-700 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/600-800MHz |
600-800 |
0.6 |
46 |
1.30 |
100 |
20/100 |
|
TG9662HS-X/670-770MHz |
670-770 |
0.8 |
40 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/690-860MHz |
690-860 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/700-800MHz |
700-800 |
0.5 |
50 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/700-862MHz |
700-862 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/700-900MHz |
700-900 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/703-862MHz |
703-862 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/750-950MHz |
750-950 |
0.5 |
50 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/770-860MHz |
770-860 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/800-1000MHz |
800-1000 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/854-921MHz |
854-921 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/860-872MHz |
860-872 |
0.5 |
50 |
1.15 |
100 |
20/100 |
|
TG9662HS-X/862-960MHz |
862-960 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/900-930MHz |
900-930 |
0.5 |
50 |
1.15 |
100 |
20/100 |
|
TG9662HS-X/900-1000MHz |
900-1000 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/900-1100MHz |
900-1100 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/900-1300MHz |
900-1300 |
1.0 |
38 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/950-1000MHz |
950-1000 |
0.6 |
46 |
1.20 |
100 |
20/100 |
|
TG9662HS-X/950-1260MHz |
950-1260 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/950-1280MHz |
950-1280 |
1.0 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/950-1450MHz |
950-1450 |
1.2 |
34 |
1.35 |
100 |
20/100 |
|
TG9662HS-X/960-1160MHz |
960-1160 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/960-1215MHz |
960-1215 |
0.8 |
40 |
1.25 |
100 |
20/100 |
|
TG9662HS-X/960-1260MHz |
960-1260 |
0.8 |
40 |
1.25 |
100 |
20/100 |
Reverse power 100W type
The reverse power of this figure is 100W, the specifications are shown in the table above, and the model is TG9662HS-X-100/XXX-XXXMHz
Instructions：
1, The isolator connector can be selected SMA, N, male and female head can be used with the user;
2, The reflection power is often 20W and 100W choice, the shape is the same;
3, Only some common frequencies in the table, can be produced according to the user's requirements;
4, If you do not find what you are looking for, please contact us!
