8.0 to 12.0GHz Dual Junction Coaxial Circulator THH2619CS SMA Type
Order Examples
Connector Type
|
S Type Connector Options |
N Type Connector Options |
||||||||
|
Port 1 |
Port 2 |
Port 3 |
Port 4 |
Abbreviation |
Port 1 |
Port 2 |
Port 3 |
Port 4 |
Abbreviation |
|
SMA-F |
SMA-F |
SMA-F |
SMA-F |
S |
N-F |
N-F |
N-F |
N-F |
N |
|
SMA-F |
SMA-M |
SMA-M |
SMA-M |
SKJJJ |
N-F |
N-M |
N-M |
N-M |
NKJJJ |
|
SMA-M |
SMA-F |
SMA-F |
SMA-F |
SJKKK |
N-M |
N-F |
N-F |
N-F |
NJKKK |
|
SMA-F |
SMA-F |
SMA-M |
SMA-M |
SKKJJ |
N-F |
N-F |
N-M |
N-M |
NKKJJ |
Basic Specifications
| Impedance | 50 Ω |
| Connector Type | N-F |
| Size(mm) | 50.8*28.5*15.0 |
| Operating Temp | 0~+60℃ |
| Storage temperature | -30~+70 ℃ |
Specifications
|

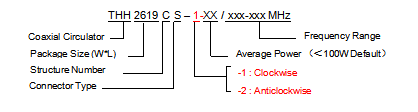

Model No. (X=1: →Clockwise) (X=2: ←Anticlockwise) |
Freq. Range GHz |
IL. dB (max) |
Isolation dB (min) |
VSWR (max) |
Forward Power W |
|
THH2619CS-X/8.0-12.0GHz |
8.0-12.0 |
1.0 |
36 |
1.30 |
30 |
If the frequency range you need is not covered in the form.
Please contact us for details.
