RFTXX-60AM1606-6 Flanged Attenuator RF Attenuator
Outline Drawing (Unit: mm/inch)
Lead length can be customized according to customer requirements
Dimensional tolerance: 5% unless otherwise stated
Typical Performance:
2dB Graph
20dB Graph

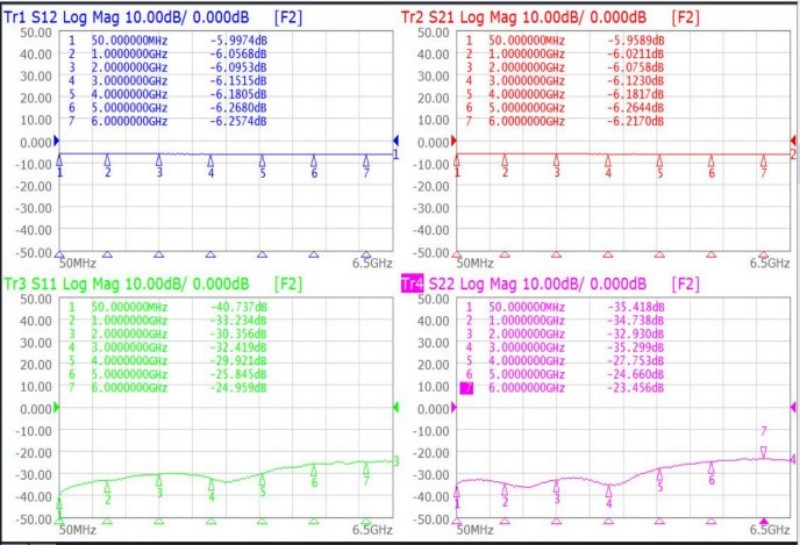

6dB Graph
30dB Graph
Installation method

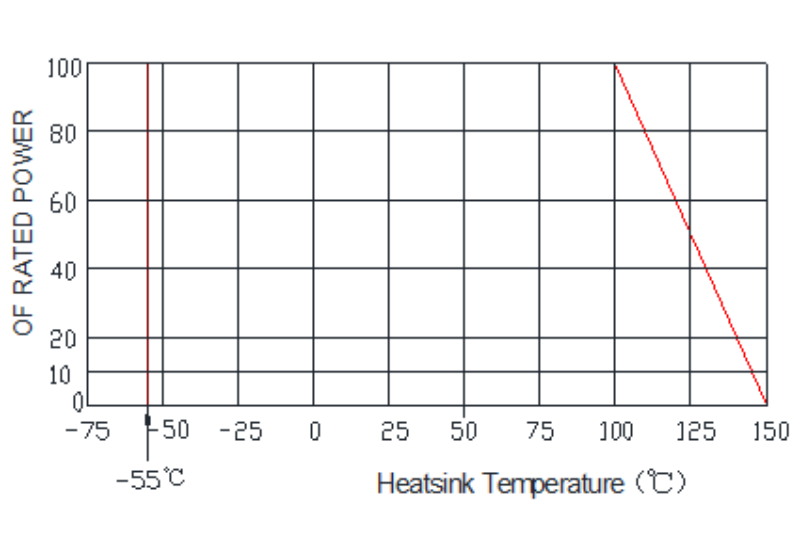

Power De-rating
P/N Designation
Use attention
■ After the storage period of newly purchased parts exceeds 6 months, attention should be paid to weldability before use. It is recommended to store in vacuum packaging.
■ The ground needs optimal heat transfer.
■ The manual welding lead should be used under a constant temperature soldering iron of no more than 350 degrees, and the welding time should be controlled within 5 seconds.
■ In order to meet the drawing requirements, it is necessary to install a sufficiently large radiator. Metal surfaces and radiators need to be coated with a very thin layer of thermal grease.
■ If necessary, add air or water cooling.
◆ Instructions：
■ Custom designed RF attenuators, RF resistors and RF terminals are available.
