RFT50-60TM1306 DC~6.0GHz RF Termination
| Model | RFT50-60TM1306(R,L,I) |
| Frequency Range | DC~6.0GHz |
| Power | 60 W |
| Resistance Range | 50 Ω |
| Resistance Tolerance | ±5% |
| VSWR | 1.25 max |
| Temperature Coefficient | <150ppm/℃ |
| Substrate Material | BeOO |
| Cap Material | Al2O3 |
| Flange | Nickel-plated copper |
| Lead | 99.99% Sterling silver |
| Resistance Technology | Thick Film |
| Operating Temperature | -55 to +150°C (See de Power De-rating) |

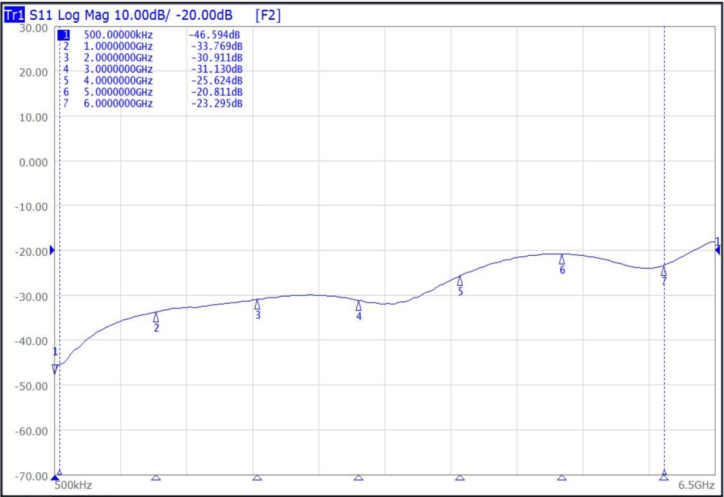

Typical Performance:
Installation method

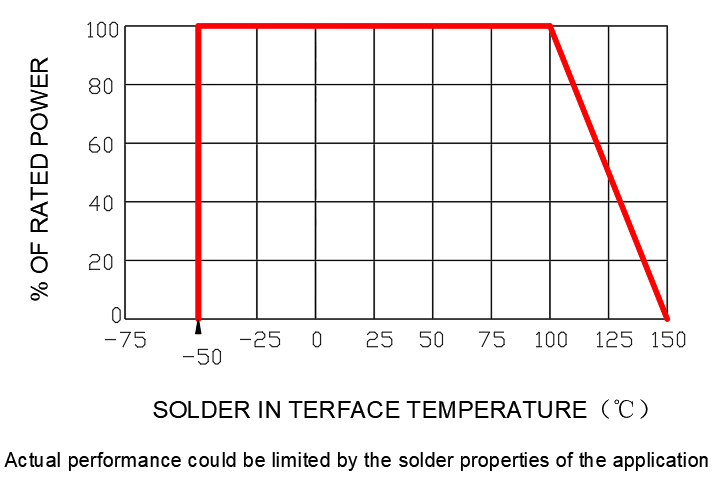

Power De-rating
P/N Designation
Matters needing attention
■ After the storage period of newly purchased parts exceeds 6 months, attention should be paid to weldability before use. It is recommended to store in vacuum packaging.
■ The ground requires optimal heat transfer.
■ Manual welding should be used under a constant temperature soldering iron of no more than 350 degrees, and the welding time should be controlled within 5 seconds.
■ In order to meet the requirements of the drawing, it is necessary to install a sufficiently large radiator. Metal surfaces and radiators need to be coated with a very thin layer of thermal grease.
■ Add air cooling or water cooling if necessary
◆ Description:
■ Custom designed RF attenuators, RF resistors and RF terminals are available.
