High Pass Filter

Model HPF-2.65G7.5A-S
Frequency Range 2650-7500MHz
Insertion Loss ≤1.8dB
Rejection ≥70dB@DC-2450MHz
VSWR 2.0 Max
Rated Power 20 W
Impedance 50 Ω
Connector Type SMA-F
Dimension 135.5×31.0×28.0mm
Surface Finishing Black Painting
Operating Temperature Ordinary temperature
Storage Temperature -55 ~ +85°C

sales@rftyt.com

Product Detail

Product Tags

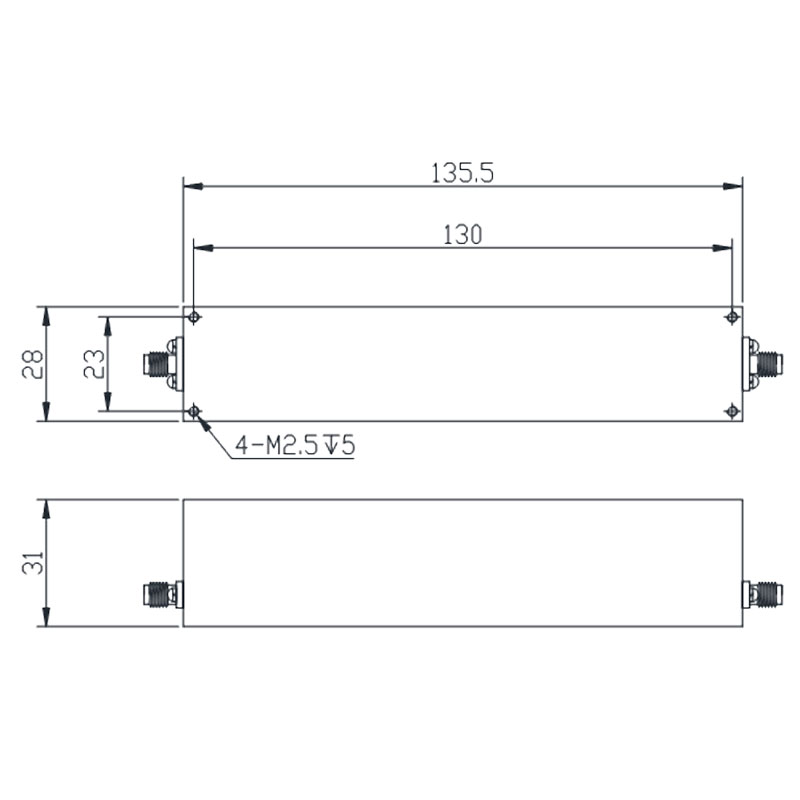

Outline Drawing (Unit: mm)

jkdf5
