LPF-DCM1400A-S Low Pass Filter RF Filter


  • Model: LPF-DCM1400A-S
  • Frequency Range: DC-1400 MHz
  • Insertion Loss: ≤2.0dB
  • Rejection: ≥40dB@1484-11000MHz
  • VSWR: 2.0 Max
  • Rated Power: 20 W
  • Impedance: 50 Ω
  • Connector Type: SMA-F (K)
  • Dimension: 94.0x40.0x27.0mm
  • Surface Finishing: Black Painting
  • Operating Temperature: Ordinary Temperature
  • Storage Temperature: -55 ~ +85°C
  • Product Detail

    Product Tags

    Features and Electrical specifications

    Model LPF-DCM1400A-S
    Frequency Range DC-1400 MHz
    Insertion Loss 2.0dB
    Rejection 40dB@1484-11000MHz
    VSWR 2.0 Max
    Rated Power 20 W
    Impedance 50 Ω
    Connector Type SMA-F  (K)
    Dimension 94.0x40.0x27.0mm
    Surface Finishing Black Painting
    Operating Temperature Ordinary Temperature
    Storage Temperature -55 ~ +85°C

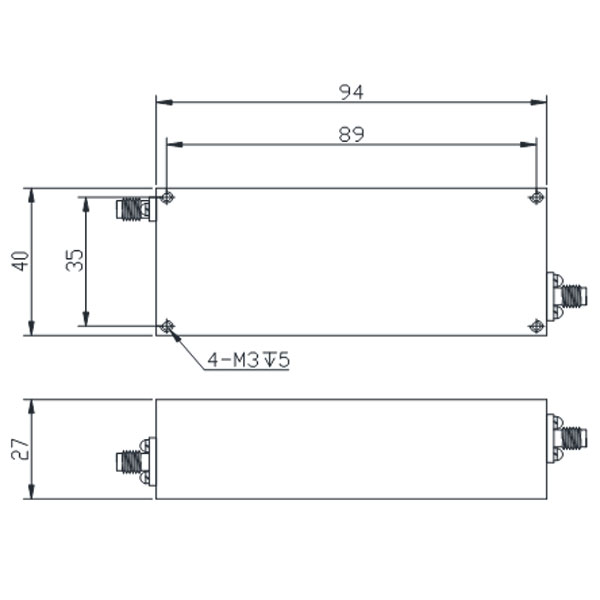

    Outline Drawing (Unit: mm)

    jdhfs2
