RFTXX-10MA5410-18 Microstrip Attenuator DC~18GHz RF Attenuator
| Model No | RFTXX-10MA5410-18 (XX= Attenuation value) |
| Nominal resistance | 50 Ω |
| Frequency Range | DC~18GHz |
| Rated Power | 10 W |
| Attenuation | 01-10dB/11-20dB/21-30dB |
| Attenuation Tolerance | ±0.5dB/±0.6dB/±1.0dB |
| VSWR | 1.25 type 1.3 max |
| Temperature Coefficient | <150ppm/℃ |
| Substrate Material | BeO |
| Resistance Process | Thick Film |
| Operating Temperature | -55 to +150°C (Reference power derating diagram) |
Outline Drawing (Unit: mm/inch)
Note:
1.If the customer needs, we can provide with the dimension of the air hood
Typical Performance:

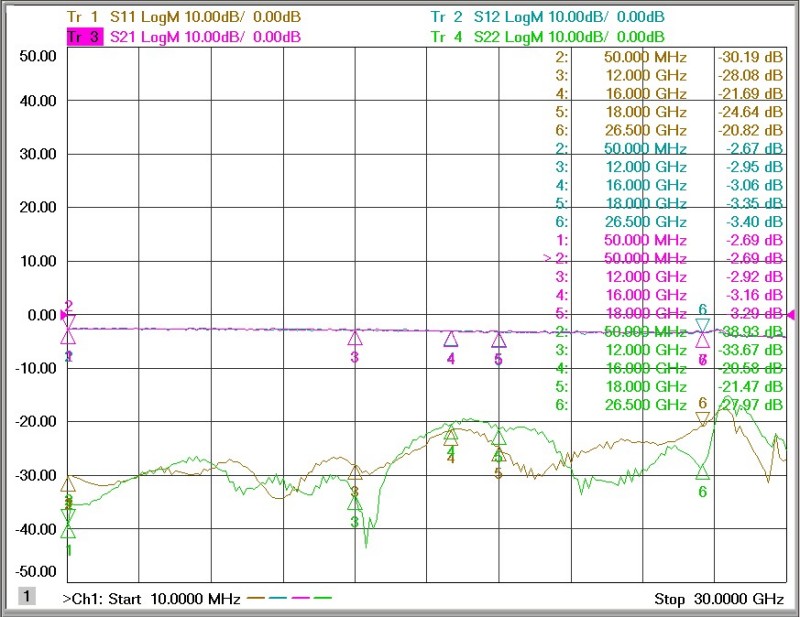

3dB Graph
10dB Graph
17dB Graph
7dB Graph
15dB Graph
25dB Graph
Installation method
Power De-rating
P/N Designation
Attention
■The cavity and heat sink need to be tightly connected to ensure heat dissipation
■ Good grounding is required to ensure S parameters
■ In order to meet the requirements of the drawings, a radiator of sufficient size must be installed.
■ If necessary, add air or water cooling.
■ The connection between the connector and the attenuator should preferably be an elastic contact
◆ Instructions：
■ Custom designed RF attenuators, RF resistors and RF terminations are available.
