RFTXX-30MA1132-10 Microstrip Attenuator RF Attenuator
Outline Drawing (Unit: mm/inch)
Note:
1.If the customer needs, we can provide with the dimension of the air hood
Typical Performance:
3dB Graph
10dB Graph

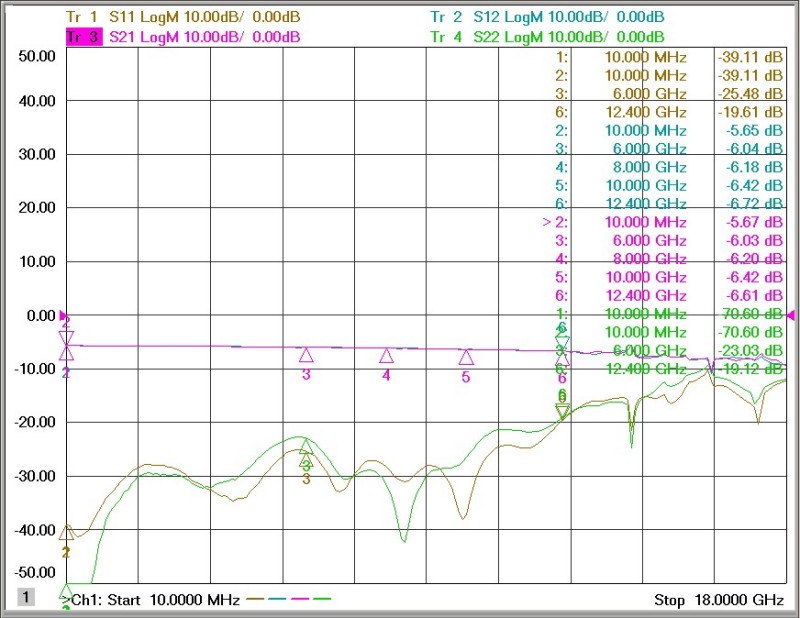

6dB Graph
20dB Graph
Installation method
Power De-rating
P/N Designation
Attention
■The cavity and heat sink need to be tightly connected to ensure heat dissipation
■ Good grounding is required to ensure S parameters
■ In order to meet the requirements of the drawings, a radiator of sufficient size must be installed.
■ If necessary, add air or water cooling.
■ The connection between the connector and the attenuator should preferably be an elastic contact
◆ Instructions：
■ Custom designed RF attenuators, RF resistors and RF terminations are available.
