About us

RFTYT Co., Ltd. is located at No. 218, Economic Development Zone, Mianyang City, Sichuan Province, China. The company covers an area of 1200 square meters and has 26 research and development personnel.

Business philosophy

The company adheres to the business philosophy of "quality first, customer foremost, innovative development, integrity and win-win", fulfills social responsibilities such as green environmental protection, giving back to society, and caring for employees, and takes "innovation, excellence, and efficiency" as its continuous pursuit and goal.

It is committed to becoming a first-class microwave component research and production manufacturer in China.

Welcome to consult and cooperate with users!

Products and Applications

The products mainly include various waveguides (circular transition waveguide, straight waveguide, inflatable waveguide, E/H curved waveguide, twisted waveguide, transition waveguide, soft waveguide, inflatable waveguide, double ridge waveguide), waveguide couplers (probe coupler, ring coupler, cross coupler, double loop coupler, high directional coupler), waveguide loads (high-power water load, dry load, matched load), high-power waveguide circulators (4-port circulators, 3-port circulators), rotary joints (U-shaped, L-shaped, I-type, dual channel), coaxial waveguide converters (orthogonal structure, termination structure, high-power), waveguide power dividers, coaxial attenuators, coaxial detectors, cables and other microwave component products.The product is widely used in various accelerator systems, radar and satellite communication systems. We have obvious advantages in product quality, production cycle, and after-sales service, and have received unanimous praise from users.


straight waveguide

Tube type

Frequency

Range

(GHz)

VSWR

Inflation

Pressure

(Mpa)
BJ14 1.13-1.73 ≤ 1.05 ≤ 0.3
BJ18 1.45-2.20 ≤ 1.05 ≤ 0.3
BJ22 1.72-2.61 ≤ 1.05 ≤ 0.3
BJ26 2.17-3.3 ≤ 1.05 ≤ 0.3
BJ32 2.60-3.95 ≤ 1.05 ≤ 0.3
BJ40 3.22-4.90 ≤ 1.05 ≤ 0.3
BJ48 3.94-5.99 ≤ 1.05 ≤ 0.3
BJ58 4.64-7.05 ≤ 1.05 ≤ 0.3
BJ70 5.38-8.17 ≤ 1.1 ≤ 0.3
BJ84 6.57-9.99 ≤ 1.1 ≤ 0.3
BJ100 8.20-12.5 ≤ 1.1 \
BJ120 9.84-15.0 ≤ 1.1 \
BJ140 11.9-18.0 ≤ 1.1 \
BJ220 17.6-26.7 ≤ 1.1 \
BJ320 26.3-40.0 ≤ 1.1 \
图片 23
图片 29
图片 24
图片 25
图片 26

Bent waveguide

Tube type

Frequency

Range (GHz)

Working bandwidth   (E-bend/H-bend )

VSWR

Inflation

Pressure

(Mpa)
 BJ14 1.13-1.73 Full band / ≤ 15% ≤ 1.15 ≤ 0.3
 BJ18 1.45-2.20 Full band / ≤ 15% ≤ 1.15 ≤ 0.3
BJ22 1.72-2.61 Full band / ≤ 15% ≤ 1.15 ≤ 0.3
BJ26 2.17-3.3 Full band / ≤ 15% ≤ 1.15 ≤ 0.3
 BJ32 2.60-3.95 Full band / ≤ 15% ≤ 1.15 ≤ 0.3
BJ40 3.22-4.90 Full band / ≤ 15% ≤ 1.15 ≤ 0.3
 BJ48 3.94-5.99 Full band / ≤ 15% ≤ 1.15 ≤ 0.3
Bj58 4.64-7.05 Full band / ≤ 15% ≤ 1.15 ≤ 0.3
BJ70 5.38-8.17 Full band / ≤ 15% ≤ 1.15 ≤ 0.3
BJ84 6.57-9.99 Full band / ≤ 15% ≤ 1.15 ≤ 0.3
BJ100 8.20-12.5 Full band / ≤ 15% ≤ 1.2 \
BJ120 9.84-15.0 Full band / ≤ 15% ≤ 1.2 \
BJ140 11.9-18.0 Full band / ≤ 15% ≤ 1.2 \
BJ220 17.6-26.7 Full band / ≤ 15% ≤ 1.2 \
BJ320 26.3-40.0 Full band / ≤ 15% ≤ 1.2 \
图片 36
图片 37
图片 39
图片 38

E/H Arc-shaped waveguide

Tube type

Frequency

Range

(GHz)

VSWR

Inflation

Pressure

(Mpa)
BJ14 1.13-1.73 ≤ 1.1 ≤ 0.3
BJ18 1.45-2.20 ≤ 1.1 ≤ 0.3
BJ22 1.72-2.61 ≤ 1.1 ≤ 0.3
BJ26 2.17-3.3 ≤ 1.1 ≤ 0.3
BJ32 2.60-3.95 ≤ 1.1 ≤ 0.3
BJ40 3.22-4.90 ≤ 1.1 ≤ 0.3
BJ48 3.94-5.99 ≤ 1.1 ≤ 0.3
BJ58 4.64-7.05 ≤ 1.1 ≤ 0.3
BJ70 5.38-8.17 ≤ 1.1 ≤ 0.3
BJ84 6.57-9.99 ≤ 1.1 ≤ 0.3
BJ100 8.20-12.5 ≤ 1.15 \
BJ120 9.84-15.0 ≤ 1.15 \
BJ140 11.9-18.0 ≤ 1.15 \
BJ220 17.6-26.7 ≤ 1.15 \
BJ320 26.3-40.0 ≤ 1.15 \
图片 40

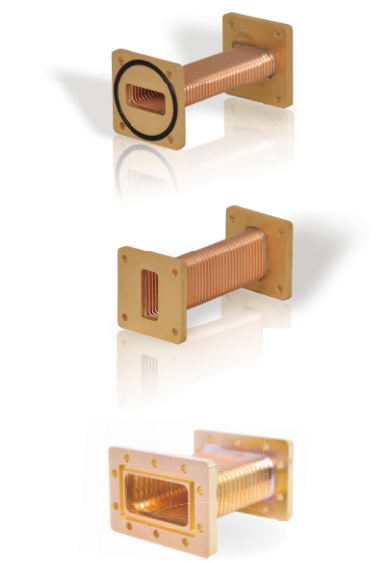

twisted  waveguide

Tube type

Frequency

Range

(GHz)

Bandwidth

VSWR

Inflation

Pressure

(Mpa)
BJ22 1.72-2.61 ≤ 10% ≤ 1.1 ≤ 0.3
BJ26 2.17-3.3 ≤ 10% ≤ 1.1 ≤ 0.3
BJ32 2.60-3.95 ≤ 10% ≤ 1.1 ≤ 0.3
BJ40 3.22-4.90 ≤ 10% ≤ 1.1 ≤ 0.3
BJ48 3.94-5.99 ≤ 10% ≤ 1.1 ≤ 0.3
BJ58 4.64-7.05 ≤ 10% ≤ 1.1 ≤ 0.3
BJ70 5.38-8.17 ≤ 10% ≤ 1.1 ≤ 0.3
BJ84 6.57-9.99 ≤ 10% ≤ 1.1 ≤ 0.3
BJ100 8.20-12.5 ≤ 10% ≤ 1.1 \
BJ120 9.84-15.0 ≤ 10% ≤ 1.1 \
BJ140 11.9-18.0 ≤ 10% ≤ 1.1 \
BJ220 17.6-26.7 ≤ 10% ≤ 1.15 \
BJ320 26.3-40.0 ≤ 10% ≤ 1.15 \
图片 42
图片 44
图片 46
图片 47
图片 43

flexible waveguide

Tube type

Frequency

Range

(GHz)

VSWR

Insertion Loss (dB/m)

Inflation

Pressure

(Mpa))
BJ14 1.13-1.73 ≤ 1.1 ≤ 0.15 ≤ 0.2
BJ18 1.45-2.20 ≤ 1.1 ≤ 0.15 ≤ 0.2
BJ22 1.72-2.61 ≤ 1.1 ≤ 0.15 ≤ 0.2
BJ26 2.17-3.3 ≤ 1.1 ≤ 0.15 ≤ 0.2
BJ32 2.60-3.95 ≤ 1.1 ≤ 0.15 ≤ 0.2
BJ40 3.22-4.90 ≤ 1.1 ≤ 0.15 ≤ 0.2
BJ48 3.94-5.99 ≤ 1.1 ≤ 0.15 ≤ 0.2
BJ58 4.64-7.05 ≤ 1.15 ≤ 0.2 ≤ 0.2
BJ70 5.38-8.17 ≤ 1.15 ≤ 0.2 ≤ 0.2
BJ84 6.57-9.99 ≤ 1.15 ≤ 0.3 ≤ 0.2
BJ100 8.20-12.5 ≤ 1.15 ≤ 0.4 \
BJ120 9.84-15.0 ≤ 1.15 ≤ 0.5 \
图片 48
图片 49

Inflatable waveguide

Tube type

Frequency

Range

(GHz)

Bandwidth

VSWR

Inflation

Pressure

(Mpa)
BJ14 1.13-1.73 ≤ 10% ≤ 1.1 ≤ 0.3
BJ18 1.45-2.20 ≤ 10% ≤ 1.1 ≤ 0.3
BJ22 1.72-2.61 ≤ 10% ≤ 1.1 ≤ 0.3
BJ26 2.17-3.3 ≤ 10% ≤ 1.1 ≤ 0.3
BJ32 2.60-3.95 ≤ 10% ≤ 1.1 ≤ 0.3
BJ40 3.22-4.90 ≤ 10% ≤ 1.1 ≤ 0.3
BJ48 3.94-5.99 ≤ 10% ≤ 1.1 ≤ 0.3
BJ58 4.64-7.05 ≤ 10% ≤ 1.1 ≤ 0.3
BJ70 5.38-8.17 ≤ 10% ≤ 1.1 ≤ 0.3
BJ84 6.57-9.99 ≤ 10% ≤ 1.1 ≤ 0.3
图片 51
图片 55
图片 57

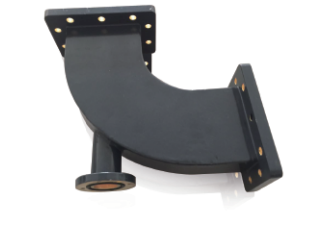

High power water-cooled waveguide, water-cooled

Tube type

Frequency

Range

(GHz)

 VSWR

Inflation

Pressure

(Mpa)
BJ14 1.13-1.73 ≤ 1.05 ≤ 0.3
BJ18 1.45-2.20 ≤ 1.05 ≤ 0.3
BJ22 1.72-2.61 ≤ 1.05 ≤ 0.3
BJ26 2.17-3.3 ≤ 1.05 ≤ 0.3
BJ32 2.60-3.95 ≤ 1.05 ≤ 0.3
BJ40 3.22-4.90 ≤ 1.05 ≤ 0.3
BJ48 3.94-5.99 ≤ 1.05 ≤ 0.3
BJ58 4.64-7.05 ≤ 1.05 ≤ 0.3
BJ70 5.38-8.17 ≤ 1.05 ≤ 0.3
BJ84 6.57-9.99 ≤ 1.05 ≤ 0.3
图片 50
图片 54

Observation window waveguide

Tube type

Frequency

Range

(GHz)

VSWR

Inflation

Pressure

(Mpa)
BJ14 1.13-1.73 ≤ 1.1 ≤ 0.3
BJ18 1.45-2.20 ≤ 1.1 ≤ 0.3
BJ22 1.72-2.61 ≤ 1.1 ≤ 0.3
BJ26 2.17-3.3 ≤ 1.1 ≤ 0.3
BJ32 2.60-3.95 ≤ 1.1 ≤ 0.3
BJ40 3.22-4.90 ≤ 1.1 ≤ 0.3
BJ48 3.94-5.99 ≤ 1.1 ≤ 0.3
BJ58 4.64-7.05 ≤ 1.1 ≤ 0.3
BJ70 5.38-8.17 ≤ 1.1 ≤ 0.3
BJ84 6.57-9.99 ≤ 1.1 ≤ 0.3
图片 60
图片 62
图片 63

同轴波导转换器

管型 频率范围 (GHz) 电压  驻波比 插入损耗

(dB)

 接头 类型 平均功率

(W)

 充气压力 (Mpa)
BJ14 1.13-1.73 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ18 1.45-2.20 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ22 1.72-2.61 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ26 2.17-3.3 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ32 2.60-3.95 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ40 3.22-4.90 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ48 3.94-5.99 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ58 4.64-7.05 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ70 5.38-8.17 ≤ 1.25 ≤ 0.3 N-K/SMA 100/50 ≤ 0.3
BJ84 6.57-9.99 ≤ 1.25 ≤ 0.3 N-K/SMA 100/50 ≤ 0.3
BJ100 8.20-12.5 ≤ 1.25 ≤ 0.3 SMA 50 \
BJ120 9.84-15.0 ≤ 1.25 ≤ 0.3 SMA 50 \
BJ140 11.9-18.0 ≤ 1.25 ≤ 0.3 SMA 50 \
BJ220 17.6-26.7 ≤ 1.25 ≤ 0.3 2.92 30 \
BJ320 26.3-40.0 ≤ 1.25 ≤ 0.3 2.92 30 \
图片 61

端接同轴波导转换器



管型 频率范围 (GHz) 电压  驻波比 插入损耗

(dB)

 接头 类型 平均功率

(W)

 充气压力 (Mpa)
BJ14 1.13-1.73 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ18 1.45-2.20 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ22 1.72-2.61 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ26 2.17-3.3 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ32 2.60-3.95 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ40 3.22-4.90 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ48 3.94-5.99 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ58 4.64-7.05 ≤ 1.25 ≤ 0.2 N 100 ≤ 0.3
BJ70 5.38-8.17 ≤ 1.25 ≤ 0.3 N-K/SMA 100/50 ≤ 0.3
BJ84 6.57-9.99 ≤ 1.25 ≤ 0.3 N-K/SMA 100/50 ≤ 0.3
BJ100 8.20-12.5 ≤ 1.25 ≤ 0.3 SMA 50 \
BJ120 9.84-15.0 ≤ 1.25 ≤ 0.3 SMA 50 \
BJ140 11.9-18.0 ≤ 1.25 ≤ 0.3 SMA 50 \
BJ220 17.6-26.7 ≤ 1.25 ≤ 0.3 2.92 30 \
BJ320 26.3-40.0 ≤ 1.25 ≤ 0.3 2.92 30 \
图片 70
图片 73

方圆转换

管型 频率范围 (GHz) 工作带宽 电压驻波比 充气压力 (Mpa)
BJ32 2.60-3.95 2% ≤ 1.1 ≤ 0.3

模式转换

管型 频率范围 (GHz) 工作带宽 电压驻波比 充气压力 (Mpa)
BJ32 2.60-3.95 5% ≤ 1.2 ≤ 0.3
图片 67
图片 69
图片 71
图片 72

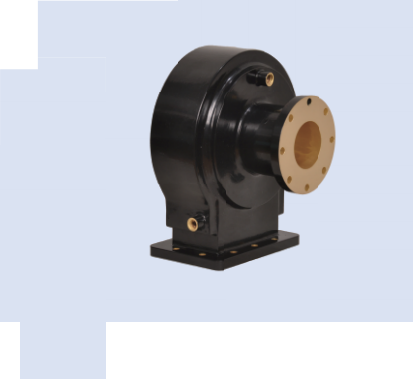

图片 74
图片 75
图片 78
图片 80

波导十字定向耦合器

管型 频率范围 (GHz) 工作带宽 主线   驻波比 可选耦合度

(dB)

 隔离度 (dB) 副线驻波 充气压力 (Mpa)
BJ14 1.13-1.73 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.15 ≤ 0.3
BJ18 1.45-2.20 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.15 ≤ 0.3
BJ22 1.72-2.61 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.15 ≤ 0.3
BJ26 2.17-3.3 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.15 ≤ 0.3
BJ32 2.60-3.95 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.15 ≤ 0.3
BJ40 3.22-4.90 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.15 ≤ 0.3
BJ48 3.94-5.99 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.15 ≤ 0.3
BJ58 4.64-7.05 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.25 ≤ 0.3
BJ70 5.38-8.17 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.25 ≤ 0.3
BJ84 6.57-9.99 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.25 ≤ 0.3
BJ100 8.20-12.5 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.25 \
BJ120 9.84-15.0 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.5 \
BJ140 11.9-18.0 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.5 \
BJ220 17.6-26.7 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.5 \
BJ320 26.3-40.0 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 1.5 \
图片 79

小功率负载

管型 频率范围 (GHz) 工作 带宽 电压   驻波比 平均功率 (KW) 充气压力 (Mpa)
BJ32 2.60-3.95 5% ≤ 1.1 ≤ 0.3 ≤ 0.3
图片 83

辐射式大功率水负载

管型 频率范围 (GHz) 工作带宽 电压驻波比 平均功率 (KW) 脉冲功率 (MW) 充气压力 (Mpa)
BJ14 1.13-1.73 ≤ 5% ≤ 1.15 ≤ 25 ≤ 2.6 ≤ 0.3
BJ18 1.45-2.20 ≤ 5% ≤ 1.15 ≤ 20 ≤ 2.6 ≤ 0.3
BJ22 1.72-2.61 ≤ 5% ≤ 1.15 ≤ 20 ≤ 2.6 ≤ 0.3
BJ26 2.17-3.3 ≤ 5% ≤ 1.15 ≤ 15 ≤ 2.6 ≤ 0.3
BJ32 2.60-3.95 ≤ 5% ≤ 1.15 ≤ 10 ≤ 2.6 ≤ 0.3
图片 85
图片 88
图片 86
图片 87

宽频带高功率辐射式水负载

管型 频率范围 (GHz) 工作带宽 电压驻波比 平均功率 (KW) 脉冲功率 (MW) 充气压力 (Mpa)
BJ32 2.60-3.95 ≤ 30% ≤ 1.15 ≤ 30 ≤ 2.6 ≤ 0.3
BJ48 3.94-5.99 ≤ 30% ≤ 1.15 ≤ 20 ≤ 1.5 ≤ 0.3
BJ84 6.57-9.99 ≤ 30% ≤ 1.15 ≤ 12 ≤ 1.2 ≤ 0.3
图片 95
图片 96
图片 94

10KW 波导二合成器

工作频率：1 .3GHz
输入端口：79.4 插入损耗：≤ 0.1dB
输出端口：WR650 波导 幅度不平度：≤ 0.1dB
输出反射系数：≤ -26dB 相位不平度：≤ 2°

波导风冷

工作频率：3900±2MHz
电压驻波比 ：VSWR ≤ 1 .1
平均功率：3KW
图片 100
图片 101

吸水式负载

管型 频率范围 (GHz) 工作带宽 电压驻波比 平均功率 (KW) 脉冲功率 (MW) 充气压力 (Mpa)
BJ14 1.13-1.73 ≤ 10% ≤ 1.2 ≤ 50 ≤ 2.6 ≤ 0.3
BJ18 1.45-2.20 ≤ 10% ≤ 1.2 ≤ 50 ≤ 2.6 ≤ 0.3
BJ22 1.72-2.61 ≤ 10% ≤ 1.2 ≤ 40 ≤ 2.6 ≤ 0.3
BJ26 2.17-3.3 ≤ 10% ≤ 1.2 ≤ 40 ≤ 2.6 ≤ 0.3
BJ32 2.60-3.95 ≤ 10% ≤ 1.2 ≤ 35 ≤ 2.6 ≤ 0.3

短尺寸波导匹配负载

管型 频率范围 (GHz) 长度（mm） 电压   驻波比 平均功率 (KW)
BJ14 1.13-1.73 200 ≤ 1.1 ≤ 2
BJ18 1.45-2.20 150 ≤ 1.1 ≤ 2
BJ26 2.17-3.3 90 ≤ 1.1 ≤ 2
BJ32 2.60-3.95 80 ≤ 1.1 ≤ 2
BJ40 3.22-4.90 70 ≤ 1.1 ≤ 2
BJ48 3.94-5.99 60 ≤ 1.15 ≤ 2
BJ58 4.64-7.05 50 ≤ 1.15 ≤ 2
BJ70 5.38-8.17 40 ≤ 1.15 ≤ 2
BJ84 6.57-9.99 40 ≤ 1.2 ≤ 2
BJ100 8.20-12.5 30 ≤ 1.2 ≤ 2
BJ120 9.84-15.0 30 ≤ 1.2 ≤ 2
BJ140 11.9-18.0 20 ≤ 1.2 ≤ 2
图片 108
图片 104

波导可调移项器

管型 频率范围 (GHz) 工作带宽 电压驻波比 插入损耗 (dB) 移项量(°)
BJ14 1.13-1.73 ≤ 15% ≤ 1.2 ≤ 0.2 0-360
BJ18 1.45-2.20 ≤ 15% ≤ 1.2 ≤ 0.2 0-360
BJ22 1.72-2.61 ≤ 15% ≤ 1.2 ≤ 0.2 0-360
BJ26 2.17-3.3 ≤ 15% ≤ 1.2 ≤ 0.2 0-360
BJ32 2.60-3.95 ≤ 15% ≤ 1.2 ≤ 0.2 0-360
BJ40 3.22-4.90 ≤ 15% ≤ 1.2 ≤ 0.2 0-360
BJ48 3.94-5.99 ≤ 15% ≤ 1.2 ≤ 0.2 0-360
BJ58 4.64-7.05 ≤ 15% ≤ 1.2 ≤ 0.2 0-360
BJ70 5.38-8.17 ≤ 15% ≤ 1.2 ≤ 0.2 0-360
BJ84 6.57-9.99 ≤ 15% ≤ 1.2 ≤ 0.3 0-360
BJ100 8.20-12.5 ≤ 15% ≤ 1.2 ≤ 0.3 0-360
BJ120 9.84-15.0 ≤ 15% ≤ 1.2 ≤ 0.3 0-360

双环路耦合器

管型 频率范围 (GHz) 工作带宽 主线   驻波比 可选耦合度

(dB)

 隔离度 (dB) 充气压力 (Mpa)
BJ14 1.13-1.73 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 0.3
BJ18 1.45-2.20 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 0.3
BJ22 1.72-2.61 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 0.3
BJ26 2.17-3.3 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 0.3
BJ32 2.60-3.95 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 0.3
BJ40 3.22-4.90 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 0.3
BJ48 3.94-5.99 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 0.3
BJ58 4.64-7.05 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 0.3
BJ70 5.38-8.17 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 0.3
BJ84 6.57-9.99 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 20 ≤ 0.3
BJ100 8.20-12.5 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 15 \
BJ120 9.84-15.0 ≤ 20% ≤ 1.1 20 ～ 60 (±1) ≥ 15 \
图片 113
图片 115
图片 114
图片 116
图片 118

正交模耦合器

管型 频率范围 (GHz) 电压驻波比 插入损耗（dB）

极化隔离（dB）

 公共端口直径


BJ120

 10.75-12.75（接收） ≤ 1.15

≤ 0.15



≥ 30



19mm/19.5mm
13.75-14.5（发射） ≤ 1.1

环耦合器

管型 频率范围 (GHz) 工作带宽 电压   驻波比 可选耦合度(dB) 充气压力 (Mpa)
BJ14 1.13-1.73 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≤ 0.3
BJ18 1.45-2.20 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≤ 0.3
BJ22 1.72-2.61 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≤ 0.3
BJ26 2.17-3.3 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≤ 0.3
BJ32 2.60-3.95 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≤ 0.3
BJ40 3.22-4.90 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≤ 0.3
BJ48 3.94-5.99 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≤ 0.3
BJ58 4.64-7.05 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≤ 0.3
BJ70 5.38-8.17 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≤ 0.3
BJ84 6.57-9.99 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≤ 0.3
BJ100 8.20-12.5 ≤ 10% ≤ 1.1 20 ～ 60 (±1) \
图片 122
图片 123

波导高方向性耦合器

管型 频率范围 (GHz) 主线驻波比 可选耦合度 (dB) 隔离度 (dB) 副线驻波 充气压力 (Mpa)
BJ14 1.13-1.73 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.15 ≤ 0.3
BJ18 1.45-2.20 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.15 ≤ 0.3
BJ22 1.72-2.61 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.15 ≤ 0.3
BJ26 2.17-3.3 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.15 ≤ 0.3
BJ32 2.60-3.95 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.15 ≤ 0.3
BJ40 3.22-4.90 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.15 ≤ 0.3
BJ48 3.94-5.99 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.15 ≤ 0.3
BJ58 4.64-7.05 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.25 ≤ 0.3
BJ70 5.38-8.17 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.25 ≤ 0.3
BJ84 6.57-9.99 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.25 ≤ 0.3
BJ100 8.20-12.5 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.25 \
BJ120 9.84-15.0 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.5 \
BJ140 11.9-18.0 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.5 \
BJ220 17.6-26.7 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.5 \
BJ320 26.3-40.0 ≤ 1.1 3 ～ 60 (±1) ≥ 30 ≤ 1.5 \

羊角耦合器

管型 频率范围 (GHz) 工作带宽 电压   驻波比 可选耦合度 (dB) 隔离度 (dB) 充气压力 (Mpa)
BJ14 1.13-1.73 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 ≤ 0.3
BJ18 1.45-2.20 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 ≤ 0.3
BJ22 1.72-2.61 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 ≤ 0.3
BJ26 2.17-3.3 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 ≤ 0.3
BJ32 2.60-3.95 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 ≤ 0.3
BJ40 3.22-4.90 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 ≤ 0.3
BJ48 3.94-5.99 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 ≤ 0.3
BJ58 4.64-7.05 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 ≤ 0.3
BJ70 5.38-8.17 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 ≤ 0.3
BJ84 6.57-9.99 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 ≤ 0.3
BJ100 8.20-12.5 ≤ 10% ≤ 1.1 20 ～ 60 (±1) ≥ 15 \
图片 129
图片 130

探针耦合器

管型 频率范围 (GHz)     充气压力 (Mpa)
BJ14       ≤ 0.3
BJ18 1.45-2.20 ≤ 1.05 20 ～ 60 (±1) ≤ 0.3
BJ22 1.72-2.61 ≤ 1.05 20 ～ 60 (±1) ≤ 0.3
BJ26 2.17-3.3 ≤ 1.05 20 ～ 60 (±1) ≤ 0.3
BJ32 2.60-3.95 ≤ 1.05 20 ～ 60 (±1) ≤ 0.3
BJ40 3.22-4.90 ≤ 1.05 20 ～ 60 (±1) ≤ 0.3
BJ48 3.94-5.99 ≤ 1.05 20 ～ 60 (±1) ≤ 0.3
BJ58 4.64-7.05 ≤ 1.05 20 ～ 60 (±1) ≤ 0.3
BJ70 5.38-8.17 ≤ 1.05 20 ～ 60 (±1) ≤ 0.3
BJ84 6.57-9.99 ≤ 1.05 20 ～ 60 (±1) ≤ 0.3
BJ100 8.20-12.5 ≤ 1.05 20 ～ 60 (±1) \
BJ120 9.84-15.0 ≤ 1.05 20 ～ 60 (±1) \
图片 145
图片 146
图片 144
图片 142
图片 141
图片 148
图片 149
图片 150

波导旋转 关节

管型 频率范围 (GHz) 工作带宽 电压   驻波比 插入损耗

(dB)

 平均功率 (KW) 充气压力 (Mpa)
BJ32 2.60-3.95 ≤ 15% ≤ 1.2 ≤ 0.25 ≤ 3 ≤ 0.3
BJ40 3.22-4.90 ≤ 15% ≤ 1.2 ≤ 0.25 ≤ 3 ≤ 0.3
BJ48 3.94-5.99 ≤ 15% ≤ 1.2 ≤ 0.25 ≤ 3 ≤ 0.3
BJ58 4.64-7.05 ≤ 15% ≤ 1.2 ≤ 0.25 ≤ 2 ≤ 0.3
BJ70 5.38-8.17 ≤ 15% ≤ 1.2 ≤ 0.25 ≤ 2 ≤ 0.3
BJ84 6.57-9.99 ≤ 15% ≤ 1.2 ≤ 0.25 ≤ 2 ≤ 0.3
BJ100 8.20-12.5 ≤ 15% ≤ 1.2 ≤ 0.25 ≤ 1 \
BJ120 9.84-15.0 ≤ 15% ≤ 1.25 ≤ 0.25 ≤ 1 \
BJ140 11.9-18.0 ≤ 15% ≤ 1.25 ≤ 0.25 ≤ 1 \
图片 159
图片 156
图片 158
图片 157
图片 155

带光纤波导旋转关节

波导通道

VSWR ≤ 1 .2@2.8GHz-3GHz

 光纤通道
插损 IL ≤ 0.1dB@2.8GHz-3GHz 波长 1285nm-1625nm
驻波起伏≤ 0.05@360° 插损≤ 3dB
插损起伏≤ 0.05@360° 回波损耗≥ 40dB
气密封 单模传输

WRD 双脊波导旋转关节

VSWR ≤ 1 .7@6GHz-18GHz
插损 IL ≤ 0.8dB@6GHz-18GHz
驻波起伏≤ 0.1@360°
插损起伏≤ 0.15@360°
寿命试验：10 转 / 分钟，连续 1000 转性能无变化
图片 166
图片 164

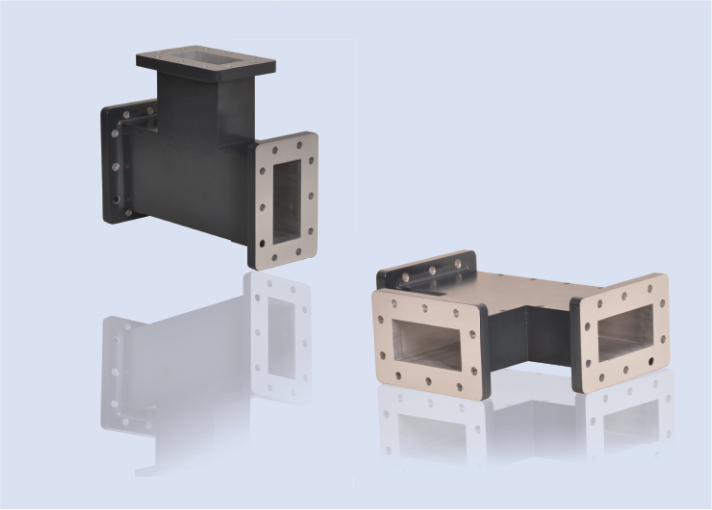

波导功分器、合成器（E_T 接头 )

管型 频率范围 (GHz) 工作带宽 电压   驻波比 插入损耗

(dB)

 对称性(dB）
BJ14 1.13-1.73 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ18 1.45-2.20 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ22 1.72-2.61 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ26 2.17-3.3 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ32 2.60-3.95 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ40 3.22-4.90 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ48 3.94-5.99 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ58 4.64-7.05 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ70 5.38-8.17 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.3
BJ84 6.57-9.99 ≤ 15% ≤ 1.2 ≤ 0.3 ≤ ±0.3
BJ100 8.20-12.5 ≤ 15% ≤ 1.2 ≤ 0.3 ≤ ±0.3
BJ120 9.84-15.0 ≤ 15% ≤ 1.2 ≤ 0.3 ≤ ±0.3
BJ140 11.9-18.0 ≤ 15% ≤ 1.25 ≤ 0.4 ≤ ±0.4
BJ220 17.6-26.7 ≤ 15% ≤ 1.25 ≤ 0.4 ≤ ±0.4
BJ320 26.3-40.0 ≤ 15% ≤ 1.25 ≤ 0.4 ≤ ±0.4

波导功分器、合成器 (H_T 接头 )

管型 频率范围 (GHz) 工作带宽 电压   驻波比 插入损耗

(dB)

 对称性 (dB）
BJ14 1.13-1.73 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ18 1.45-2.20 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ22 1.72-2.61 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ26 2.17-3.3 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ32 2.60-3.95 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ40 3.22-4.90 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ48 3.94-5.99 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ58 4.64-7.05 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.25
BJ70 5.38-8.17 ≤ 15% ≤ 1.15 ≤ 0.2 ≤ ±0.3
BJ84 6.57-9.99 ≤ 15% ≤ 1.2 ≤ 0.3 ≤ ±0.3
BJ100 8.20-12.5 ≤ 15% ≤ 1.2 ≤ 0.3 ≤ ±0.3
BJ120 9.84-15.0 ≤ 15% ≤ 1.2 ≤ 0.3 ≤ ±0.3
BJ140 11.9-18.0 ≤ 15% ≤ 1.25 ≤ 0.4 ≤ ±0.4
BJ220 17.6-26.7 ≤ 15% ≤ 1.25 ≤ 0.4 ≤ ±0.4
BJ320 26.3-40.0 ≤ 15% ≤ 1.25 ≤ 0.4 ≤ ±0.4
图片 171
图片 170

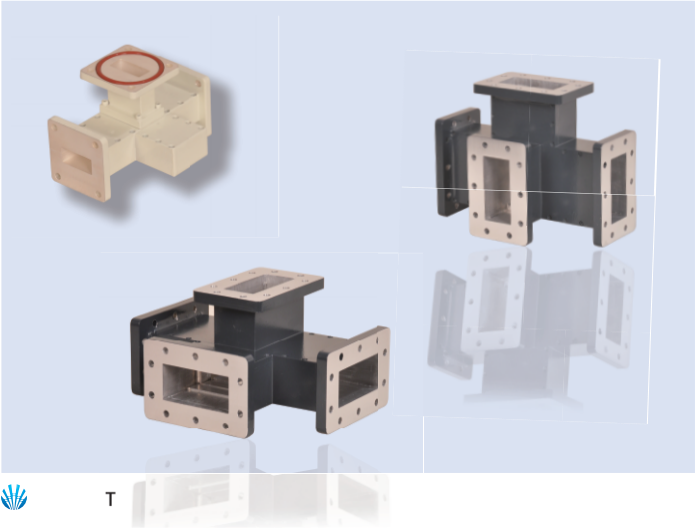

波导魔

管型         插入损耗

(dB)

 对称性 (dB） 隔离度 (dB)
H 口驻波比 E 口驻波比
BJ14 1.13-1.73 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.2 ≤ ±0.25 ≥ 35
BJ18 1.45-2.20 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.2 ≤ ±0.25 ≥ 35
BJ22 1.72-2.61 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.2 ≤ ±0.25 ≥ 35
BJ26 2.17-3.3 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.2 ≤ ±0.25 ≥ 35
BJ32 2.60-3.95 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.2 ≤ ±0.25 ≥ 35
BJ40 3.22-4.90 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.2 ≤ ±0.25 ≥ 35
BJ48 3.94-5.99 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.2 ≤ ±0.25 ≥ 35
BJ58 4.64-7.05 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.2 ≤ ±0.25 ≥ 35
BJ70 5.38-8.17 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.2 ≤ ±0.35 ≥ 35
BJ84 6.57-9.99 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.3 ≤ ±035 ≥ 35
BJ100 8.20-12.5 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.3 ≤ ±0.35 ≥ 35
BJ120 9.84-15.0 ≤ 20% ≤ 1.2 ≤ 1.35 ≤ 0.3 ≤ ±0.35 ≥ 35
BJ140 11.9-18.0 ≤ 20% ≤ 1.25 ≤ 1.45 ≤ 0.4 ≤ ±0.4 ≥ 30
BJ220 17.6-26.7 ≤ 20% ≤ 1.25 ≤ 1.45 ≤ 0.4 ≤ ±0.4 ≥ 30
BJ320 26.3-40.0 ≤ 20% ≤ 1.25 ≤ 1.45 ≤ 0.4 ≤ ±0.4 ≥ 30

波导同相功率分配器 / 合成器

管型 频率范围 (GHz) 工作带宽 电压   驻波比 插入损耗

(dB)

 对称性 (dB） 隔离度 (dB)
BJ14 1.13-1.73 ≤ 20% ≤ 1.2 ≤ 0.2 ≤ ±0.25 ≥ 18
BJ18 1.45-2.20 ≤ 20% ≤ 1.2 ≤ 0.2 ≤ ±0.25 ≥ 18
BJ22 1.72-2.61 ≤ 20% ≤ 1.2 ≤ 0.2 ≤ ±0.25 ≥ 18
BJ26 2.17-3.3 ≤ 20% ≤ 1.2 ≤ 0.2 ≤ ±0.25 ≥ 18
BJ32 2.60-3.95 ≤ 20% ≤ 1.2 ≤ 0.2 ≤ ±0.25 ≥ 18
BJ40 3.22-4.90 ≤ 20% ≤ 1.2 ≤ 0.2 ≤ ±0.25 ≥ 18
BJ48 3.94-5.99 ≤ 20% ≤ 1.2 ≤ 0.2 ≤ ±0.25 ≥ 18
BJ58 4.64-7.05 ≤ 20% ≤ 1.2 ≤ 0.2 ≤ ±0.25 ≥ 18
BJ70 5.38-8.17 ≤ 20% ≤ 1.2 ≤ 0.2 ≤ ±0.35 ≥ 18
BJ84 6.57-9.99 ≤ 20% ≤ 1.2 ≤ 0.3 ≤ ±0.35 ≥ 18
BJ100 8.20-12.5 ≤ 20% ≤ 1.2 ≤ 0.3 ≤ ±0.35 ≥ 18
BJ120 9.84-15.0 ≤ 20% ≤ 1.2 ≤ 0.3 ≤ ±0.35 ≥ 18
BJ140 11.9-18.0 ≤ 20% ≤ 1.25 ≤ 0.35 ≤ ±0.4 ≥ 18
BJ220 17.6-26.7 ≤ 20% ≤ 1.25 ≤ 0.35 ≤ ±0.4 ≥ 18
BJ320 26.3-40.0 ≤ 20% ≤ 1.25 ≤ 0.35 ≤ ±0.4 ≥ 18
图片 177
图片 178

大功率波导环形器

管型 频率范围 (GHz) 工作带宽 电压驻波比 插入损耗 (dB) 隔离度 (dB)

平均功率（W）
BJ22 1.72-2.61 ≤ 10% ≤ 1.2 ≤ 0.3 20 1000
BJ26 2.17-3.3 ≤ 10% ≤ 1.2 ≤ 0.3 20 1000
BJ32 2.60-3.95 ≤ 10% ≤ 1.2 ≤ 0.3 20 1000
BJ40 3.22-4.90 ≤ 10% ≤ 1.2 ≤ 0.3 20 1000
BJ48 3.94-5.99 ≤ 10% ≤ 1.2 ≤ 0.3 20 1000
BJ58 4.64-7.05 ≤ 10% ≤ 1.2 ≤ 0.3 20 400
BJ70 5.38-8.17 ≤ 10% ≤ 1.2 ≤ 0.3 20 400
BJ84 6.57-9.99 ≤ 10% ≤ 1.2 ≤ 0.3 20 400
BJ100 8.20-12.5 ≤ 10% ≤ 1.2 ≤ 0.3 20 400
BJ120 9.84-15.0 ≤ 10% ≤ 1.2 ≤ 0.3 20 300

大功率差相移环形器

管型 频率范围 (GHz) 工作带宽 电压   驻波比 平均功率 (KW) 插入损耗

(dB)

 隔离度 (dB) 充气压力 (Mpa)
BJ32 2.60-3.95 ≤ 5% ≤ 1.15 ≤ 3 ≤ 0.35 ≥ 25 ≤ 0.3
图片 182
图片 184
图片 187
图片 189
图片 185
图片 183
图片 186
图片 188
图片 191
图片 193
图片 192
图片 194
图片 196
图片 195
图片 197
图片 198
  • Previous:
  • Next:

    • related products

    Hit enter to search or ESC to close
