Leaded Termination
Main technical specs：
Rated power：5-800W；
Substrate materials：BeO、AlN、Al2O3
Nominal resistance value：50Ω
Resistance tolerance：±5%、±2%、±1%
emperature coefficient：＜150ppm/℃
Operation temperature：-55～+150℃
ROHS standard: Compliant with
Applicable standard: Q/RFTYTR001-2022
Lead length: L as specified in the data sheet (can be customized according to customer requirements)

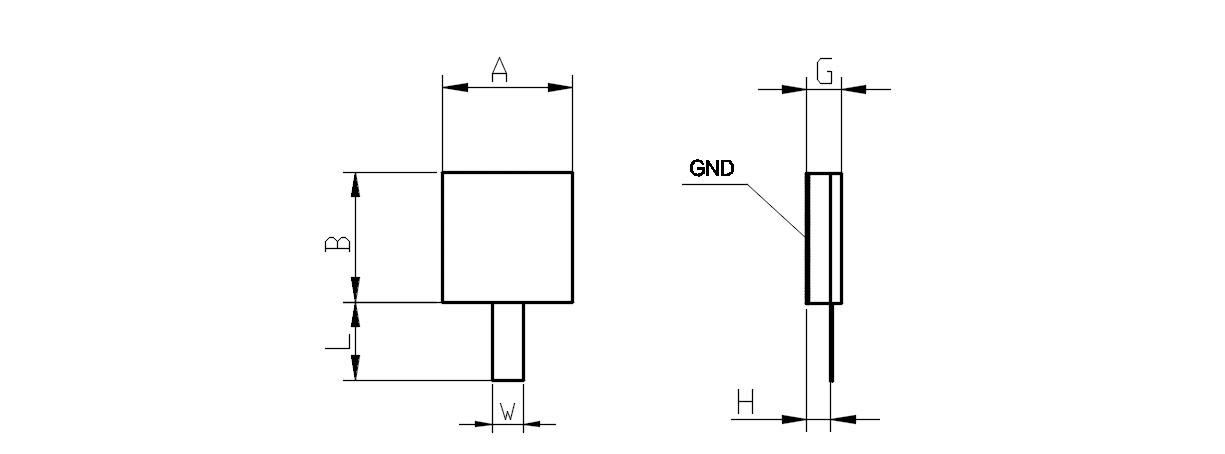

| Power (W) | Frequency | Dimensions (unit: mm) | Substrate Material | Data Sheet(PDF) | |||||
| A | B | H | G | W | L | ||||
| 5W | 6GHz | 4.0 | 4.0 | 1.0 | 1.6 | 1.0 | 3.0 | Al2O3 | RFT50A-05TM0404 |
| 11GHz | 1.27 | 2.54 | 0.5 | 1.0 | 0.8 | 3.0 | AlN | RFT50N-05TJ1225 | |
| 10W | 4GHz | 2.5 | 5.0 | 1.0 | 1.9 | 1.0 | 4.0 | BeO | RFT50-10TM2550 |
| 6GHz | 4.0 | 4.0 | 1.0 | 1.6 | 1.0 | 3.0 | Al2O3 | RFT50A-10TM0404 | |
| 8GHz | 4.0 | 4.0 | 1.0 | 1.6 | 1.0 | 3.0 | BeO | RFT50-10TM0404 | |
| 10GHz | 5.0 | 3.5 | 1.0 | 1.9 | 1.0 | 3.0 | BeO | RFT50-10TM5035 | |
| 18GHz | 5.0 | 2.5 | 1.0 | 1.8 | 1.0 | 3.0 | BeO | RFT50-10TM5023 | |
| 20W | 4GHz | 2.5 | 5.0 | 1.0 | 1.9 | 1.0 | 4.0 | BeO | RFT50-20TM2550 |
| 6GHz | 4.0 | 4.0 | 1.0 | 1.6 | 1.0 | 3.0 | Al2O3 | RFT50N-20TJ0404 | |
| 8GHz | 4.0 | 4.0 | 1.0 | 1.6 | 1.0 | 3.0 | BeO | RFT50-20TM0404 | |
| 10GHz | 5.0 | 3.5 | 1.0 | 1.9 | 1.0 | 3.0 | BeO | RFT50-20TM5035 | |
| 18GHz | 5.0 | 2.5 | 1.0 | 1.8 | 1.0 | 3.0 | BeO | RFT50-20TM5023 | |
| 30W | 6GHz | 6.0 | 6.0 | 1.0 | 1.8 | 1.0 | 5.0 | AlN | RFT50N-30TJ0606 |
| 6.0 | 6.0 | 1.0 | 1.8 | 1.0 | 5.0 | BeO | RFT50-30TM0606 | ||
| 60W | 6GHz | 6.0 | 6.0 | 1.0 | 1.8 | 1.0 | 5.0 | AlN | RFT50N-60TJ0606 |
| 6.0 | 6.0 | 1.0 | 1.8 | 1.0 | 5.0 | BeO | RFT50-60TM0606 | ||
| 6.35 | 6.35 | 1.0 | 1.8 | 1.0 | 5.0 | BeO | RFT50-60TJ6363 | ||
| 100W | 3GHz | 6.35 | 9.5 | 1.0 | 1.6 | 1.4 | 5.0 | AlN | RFT50N-100TJ6395 |
| 8.9 | 5.7 | 1.0 | 1.6 | 1.0 | 5.0 | AlN | RFT50N-100TJ8957 | ||
| 9.5 | 9.5 | 1.0 | 1.6 | 1.4 | 5.0 | BeO | RFT50-100TJ9595 | ||
| 4GHz | 10.0 | 10.0 | 1.0 | 1.8 | 1.4 | 5.0 | BeO | RFT50-100TJ1010 | |
| 6GHz | 6.35 | 6.35 | 1.0 | 1.8 | 1.0 | 5.0 | BeO | RFT50-100TJ6363 | |
| 8.9 | 5.7 | 1.0 | 1.6 | 1.0 | 5.0 | AlN | RFT50N-100TJ8957B | ||
| 8GHz | 9.0 | 6.0 | 1.5 | 2.0 | 1.0 | 5.0 | BeO | RFT50-100TJ0906C | |
| 150W | 3GHz | 6.35 | 9.5 | 1.0 | 1.6 | 1.4 | 5.0 | AlN | RFT50N-150TJ6395 |
| 9.5 | 9.5 | 1.0 | 1.6 | 1.4 | 5.0 | BeO | RFT50-150TJ9595 | ||
| 4GHz | 10.0 | 10.0 | 1.0 | 1.8 | 1.4 | 5.0 | BeO | RFT50-150TJ1010 | |
| 6GHz | 10.0 | 10.0 | 1.0 | 1.8 | 1.4 | 5.0 | BeO | RFT50-150TJ1010B | |
| 200W | 3GHz | 9.5 | 9.5 | 1.0 | 1.6 | 1.4 | 5.0 | BeO | RFT50-200TJ9595 |
| 4GHz | 10.0 | 10.0 | 1.0 | 1.8 | 1.4 | 5.0 | BeO | RFT50-200TJ1010 | |
| 10GHz | 12.7 | 12.7 | 2.0 | 3.5 | 2.4 | 5.0 | BeO | RFT50-200TM1313B | |
| 250W | 3GHz | 12.0 | 10.0 | 1.5 | 2.5 | 1.4 | 5.0 | BeO | RFT50-250TM1210 |
| 10GHz | 12.7 | 12.7 | 2.0 | 3.5 | 2.4 | 5.0 | BeO | RFT50-250TM1313B | |
| 300W | 3GHz | 12.0 | 10.0 | 1.5 | 2.5 | 1.4 | 5.0 | BeO | RFT50-300TM1210 |
| 10GHz | 12.7 | 12.7 | 2.0 | 3.5 | 2.4 | 5.0 | BeO | RFT50-300TM1313B | |
| 400W | 2GHz | 12.7 | 12.7 | 2.0 | 3.5 | 2.4 | 5.0 | BeO | RFT50-400TM1313 |
| 500W | 2GHz | 12.7 | 12.7 | 2.0 | 3.5 | 2.4 | 5.0 | BeO | RFT50-500TM1313 |
| 800W | 1GHz | 25.4 | 25.4 | 3.2 | 4 | 6 | 7 | BeO | RFT50-800TM2525 |
Overview
Flangeless Mount Termination is made by selecting appropriate substrate size and materials based on different frequency requirements and power requirements, through resistance, circuit printing, and sintering. The commonly used substrate materials can mainly be beryllium oxide, aluminum nitride, aluminum oxide, or better heat dissipation materials.
Flangeless Mount Termination, divided into thin film process and thick film process. It is designed based on specific power and frequency requirements, and then processed through process. If you have special needs, please contact our sales personnel to provide specific solutions for customization.
